1. Wire Weaving Mesh Machine Overview
The AG1300B is a fully automatic Wire Weaving Mesh machine with a working width of 1300 mm. Designed for continuous wire feeding and precision weaving, it combines PLC control, servo drives and automatic mesh winding for fine metal wire cloth production.
2. Wire Weaving Mesh Specifications
The AG1300B Wire Weaving Mesh machine supports wire diameters from 0.017 to 0.14 mm. Its specified weaving range covers 40–635 mesh per inch for plain and twill structures, and 325–2300 mesh per inch for Dutch weave, subject to the selected wire and fabric specification.
3. Wire Weaving Mesh Precision Control
Stable warp tension is essential when weaving fine filtration fabrics. The Wire Weaving Mesh system combines intelligent tension control with servo driven warp feeding and take-up, helping maintain controlled wire movement throughout the weaving process.
4. Wire Weaving Mesh Materials and Applications
Compatible materials include stainless steel, copper, aluminum, nickel, titanium and tungsten. The AG1300B Wire Weaving Mesh machine serves industrial wire cloth and fine filtration production, with potential applications in chemical processing, lithium batteries, hydrogen energy and aerospace supply chains.
5. Wire Weaving Mesh Operating System
A Chinese and English touchscreen provides access to weaving parameters, machine status and fault information. Operators can manage the Wire Weaving Mesh process through the integrated PLC and servo control system, with recorded alarms supporting troubleshooting and maintenance.
6. Wire Weaving Mesh Manufacturer
Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD is based in Anping, Hebei, China. Drawing on over four decades of machinery manufacturing experience, the company develops intelligent Wire Weaving Mesh equipment and customized automation solutions for international customers.
7. Wire Weaving Mesh Supply and Support
The standard Wire Weaving Mesh supply includes the main machine, warp beam, standard spare parts, tools and operating documentation. Installation guidance, online technical support and a 12-month
8.Customer Applications
|

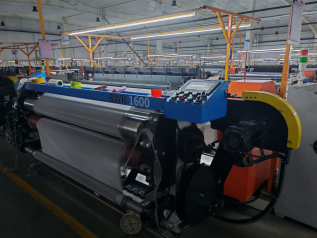

AG130B machines installed across a customer’s production workshop.
|
AG130B weaving copper wire mesh at a customer’s factory.
|
|

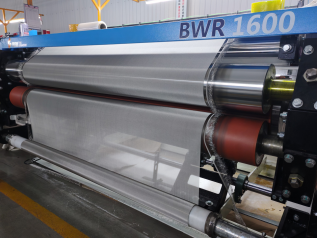

AG160B weaving stainless steel mesh at a customer’s factory.
|
Close-up of stainless steel mesh production on an AG160B.
|
