1. Wire Weaving Mesh Continuous Production
From automatic wire feeding to finished mesh winding, the AG1300B brings the main weaving stages into one coordinated production system. This 1300 mm Wire Weaving Mesh machine is intended for manufacturers seeking automatic operation across repeated metal wire cloth production runs.
2. Wire Weaving Mesh Drive Coordination
Servo systems control warp delivery, rapier movement and mesh take-up, while frequency inverter control manages the main drive. Bus communication unifies signal transmission within the Wire Weaving Mesh machine, supporting stable coordination between electrical controls and mechanical movements.
3. Wire Weaving Mesh Weaving Options
Plain, twill and Dutch weave structures are available on the AG1300B. Its four-frame arrangement gives Wire Weaving Mesh producers several fabric construction options, allowing the weaving specification to be selected according to the intended filtration or industrial wire cloth requirement.
4. Wire Weaving Mesh Production Range
The machine handles a specified wire diameter range of 0.017–0.14 mm and has a maximum rated speed of 120 RPM. Actual Wire Weaving Mesh operating speed should be selected for the wire material, mesh count and weaving structure rather than treated as a fixed production setting.
5. Wire Weaving Mesh Collection Methods
Continuous mesh removal and direct winding are listed collection options. These arrangements allow the Wire Weaving Mesh take-up method to be matched to downstream handling needs, while coordinated tension and winding control help manage fabric movement as production continues.
6. Wire Weaving Mesh Equipment Engineering
Manufactured by Anping Weaver Wire Mesh Equipment Manufacturing Co., LTD, the AG1300B combines a heavy-duty welded steel frame with cast iron wall plates. This Wire Weaving Mesh design reflects the company's focus on engineering discipline, production stability and customer-driven equipment customization.
7. Wire Weaving Mesh Expansion Options
Optional equipment includes a lubrication system, wire accumulator stand, automatic edge cutting and additional warp beams. MES connectivity is also available as an option for customers planning to connect Wire Weaving Mesh equipment with a broader production management system.
8.Customer Applications
|

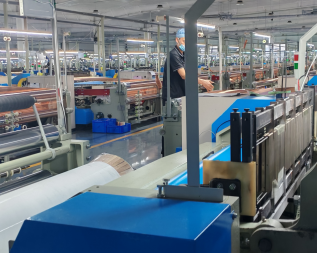

AG160B machines deployed across a customer’s weaving workshop.
|
AG160B machines arranged for production at a customer’s factory.
|
|
AG130B weaving copper wire mesh at a customer’s factory.
|
AG130B machines installed across a customer’s production workshop.
|
